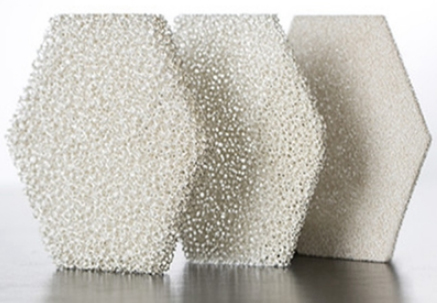

Silver Foam
The microstructure of foamed silver has three
dimensional structure with open holes and good mechanical and machining
properties. Its aperture size, porosity, thickness of the material (can
be made into ultra-thin structure, about 0.1 mm) and structure can be
according to the user should
The silver foam designed and manufactured with the requirements is made
of nanometer or micron silver powder, silver foam has the function of
nanometer silver.
Porosity: 85% or higher
Hole number: 80-110 ppi
Thickness: 0.2 2.5) + / - 0.05 mm
Specific surface area :≥10㎡/g
Tensile strength: longitudinal ≥1.25N/mm2; Lateral acuity 1.00 N/was
Elongation: longitudinal ≥5%; Lateral 12% or higher
Width (50-400) + / - 0.5 mm
Application direction:
Silver catalyst is widely used in petroleum, chemical, pharmaceutical
and other industries. Silver foam is a new functional material, with
high porosity, large specific surface area, good permeability and other
characteristics, using it as a catalyst has high activity, good
stability, choice
It is an ideal substitute for the existing silver catalyst. And used in
the production of formaldehyde, to replace the traditional electrolytic
silver and pumice silver catalyst. The results show that the selectivity
of silver foam catalyst is up to 90~96%, which is higher than that of
traditional catalyst
Electrolytic silver catalyst 2~5%, 5 ~ 7% pumice silver over 40%
commercial mass fraction, the service life can reach more than 1 year.
Silver foam has super thermal conductivity, silver is a good thermal
conductivity of metal, thermal conductivity of 418.6 W/ (m•K), can be
used for motor/electrical appliances, semiconductor electronic
components of the corresponding major equipment needed for rapid and
efficient thermal conductivity and radiator
